Unique Features
Durable double butted aluminium frame.
Shimano 4-piston Deore brakes and RockShox Pike 140 mm trail fork.
Progressive trail bike geometry with long reach, slack head angle and steep seat angle.
29er wheels specced with 2.5" front and 2.4" rear tyre with aggressive trail pattern.
Extremely low standover height paired with long travel dropper posts.
12-speed Shimano Deore drivetrain.

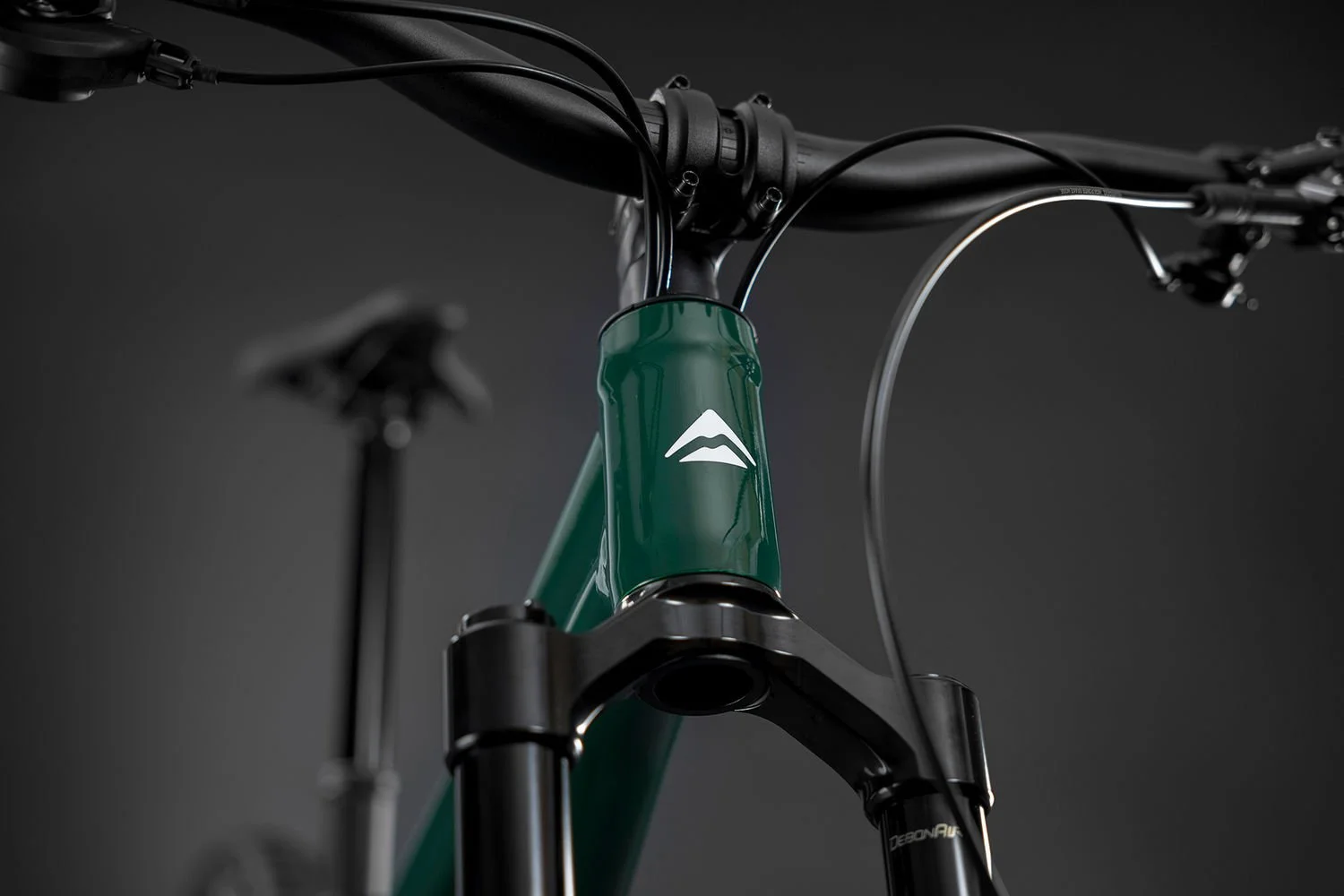

WIRE PORT SYSTEM
Most cables, including gear, rear brake and dropper post cables, enter the frame through a specifically designed 2-piece headset cover, creating a clutter-free cockpit and reducing cable rattle. The proven WIRE PORT system can be found on the majority of road, mountain, gravel and full-suspension bikes. The ACROS parts of the WIRE PORT system offer impressive longevity due to their sophisticated seals and allow for quick and easy bearing replacement and cable maintenance when the time comes.

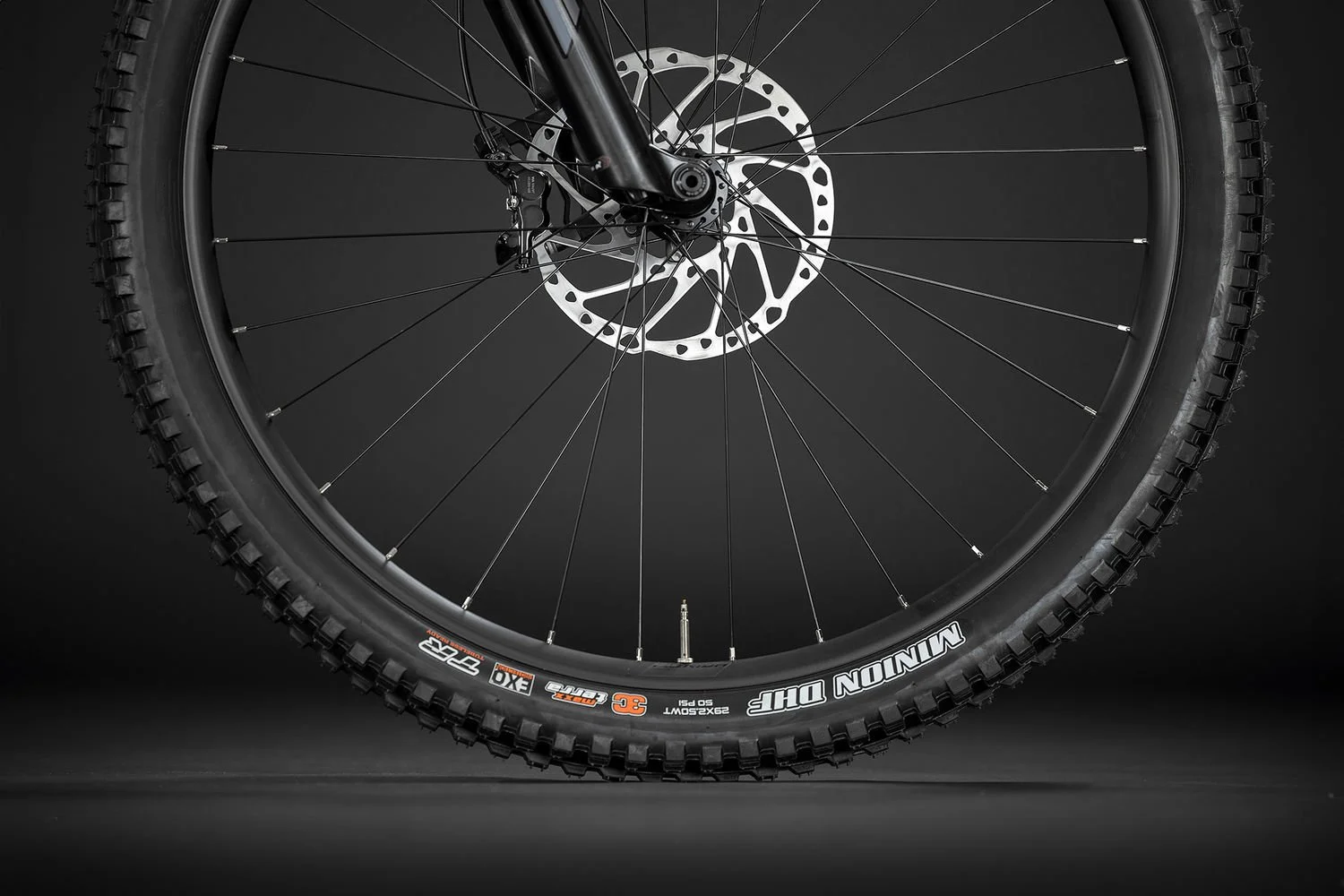

29ER ALL THE WAY
While mullet wheels are becoming increasingly popular in the world of trail and enduro riding, our BIG.TRAIL sticks to its proven 29er hoops. Extensive testing has shown that while a 27.5“ wheel may have a slight advantage on rough trails and when hammering over rocks, due to its greater bum clearance and ability to move around the bike, the full 29“ is the better all-rounder. It pedals better, has a more balanced weight distribution and is still very agile. We also found that the head angle had a more significant overall effect than the smaller rear wheel, further confirming our decision to stick with 29“ front and rear for our BIG.TRAIL, and to continue combining this with a 140 mm travel fork.

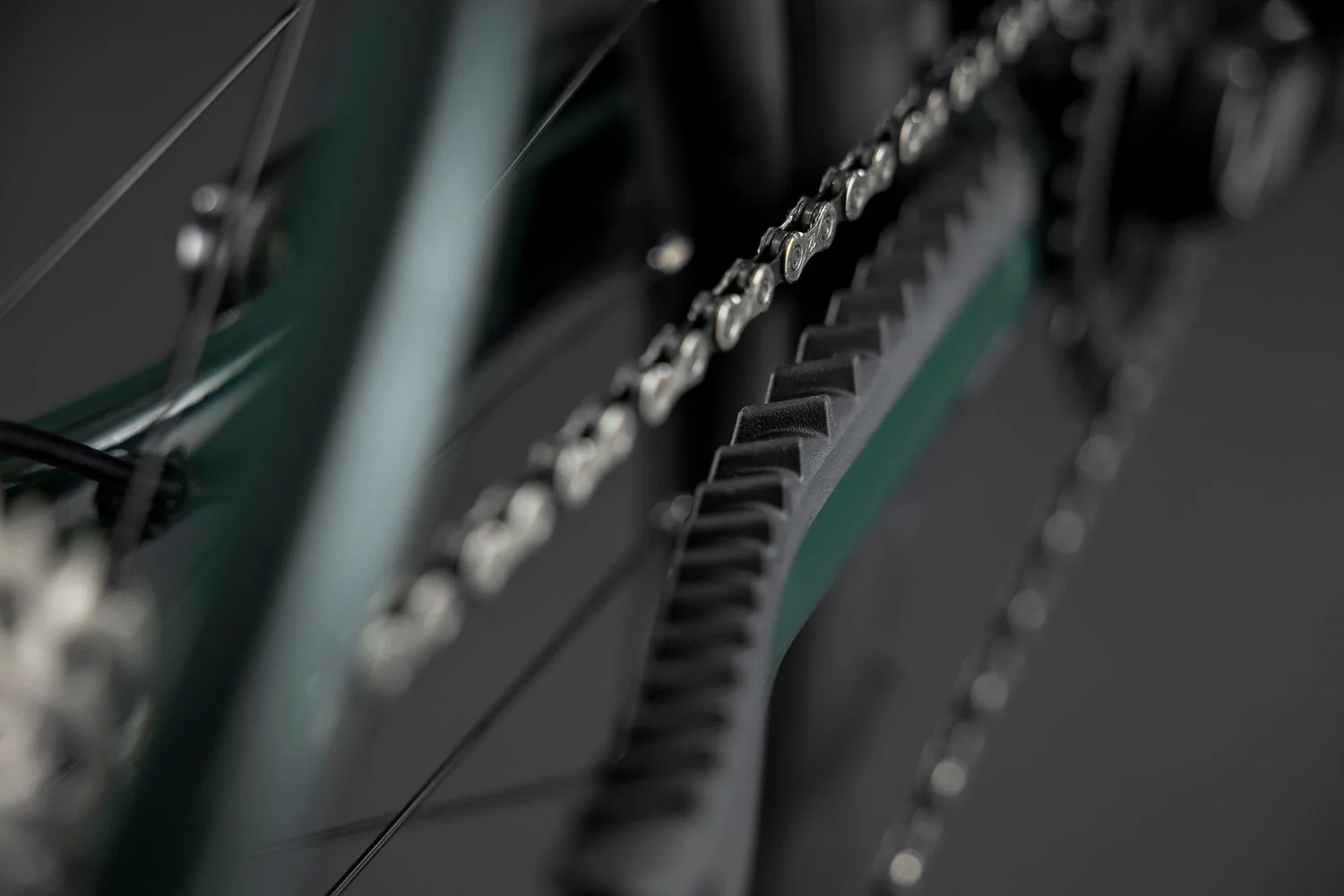

CHAIN STAY PROTECTOR
Trail hardtails are particularly sensitive to chain slap on rough trails. As a result, riding on a demanding trail can be a noisy affair. To further reduce the noise of our BIG.TRAIL and make it one of the quietest trail hardtails on the market, we have gone the extra mile and, while keeping the overall price of the bike in mind, developed an elaborate but highly effective chainstay protector. It is made from two materials: a hard plastic that gives it the shape and rigidity to fit to the chainstay without glueing, and a soft plastic on the outside for more damping when the chain hits. In addition to the soft outer material, we have added air pockets to further increase the perfect sound-deadening abilities. The rear part of the chainstay protector also protects the tube from shoe rubbing, which can happen to riders with larger feet, especially when using flat pedals.
Price Includes
Merida Big.Trail 600 - Deep Forest Green (White):
Merida Big.Trail 600 - Deep Forest Green (White) Fully Assembled, Checked & Fine Tuned.
Please contact us separately for customization at EMAIL: sales_sq@hupleong.com
Payment Options
Buy Now & Pay Later with the following modes in our showroom:
6 or 12 months interest-free for DBS/POSB Credit Card - Phyiscal card is needed.
3 months interest-free through Atome payments.
Trade-In Policy
Out with the Old, In with the New:
Purchased a bicycle from us in the last 2 years? If so, we’d be able to have your Current bike Traded In and its rebate used on this New Bike!
Please contact us separately at EMAIL: sales_sq@hupleong.com or Click Here to fill out our Contact Form.
Find out if you are eligible for Trade-In Here!
Accessories Recommended for add-on:
Accessories installed where necessary.
Find A Merida Near you:
Chapter 2 Cycle Pte Ltd - Block 451 Ang Mo Kio Avenue 10, #01-1761, Singapore 560451 - Northern Singapore
12cycle - 326 Tanjong Katong Road, Singapore 437104 - Eastern Singapore
Tube Innovation Bike Shop - Block 13 Old Airport Road, #01-55, Singapore 390013 - Eastern Singapore
Bike World - 625 Elias Road, #01-318, Elias Mall, Singapore 510625 - Eastern Singapore
The Bike Settlement - Block 261 Waterloo Street, #01-06, Waterloo Centre, Singapore 180261 - Central Singapore
Seng Bee Bicycle Shop - Block 5 Upper Boon Keng Road, #01-12, Singapore 380005 - Central Singapore
Bike Haus International - 785 Bukit Timah Road, Singapore 269761 - Western Singapore
Specifications
Hup Leong Co reserves the right to change information, specifications and graphics on these pages without prior notice.
Weight
14.5kg
Frame
BIG.TRAIL TFS II; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR
Fork
Rock Shox Pike; Air; 140 STR; tapered; platform; 44mm fork offset; 29x2.6 max. WHS
Seatpost
MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT: 150 SPT - SHORT/MID : 170 SPT - LONG: 200 SPT - XLONG: 230 SPT
Handlebar
MERIDA EXPERT TR II; MAT aluminium; 780 WHB; 30 RHB
Stem
MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD, 40mm all sizes
Crank
Shimano Deore M6120; 32 ATC, 165mm XSHORT, SHORT, MID and LONG; 170mm XLONG
Rear Derailleur
Shimano Deore M6100; SGS
Cassette
Shimano Deore M6100; 10-51 ATC; 12 GER
Shifters
(R) Shimano Deore M6100, (L) Shimano SL-MT500-IL
Brakes
Shimano Deore M6120; 4 piston
Rims
Reynolds 309 Enduro Comp; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape installed); 29"
Hubs
(F) Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock, (R) Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock
Tires
(F) Maxxis Minion DHF; 29x2.5"; fold; TR EXO 3C MaxxTerra, (R) Maxxis Dissector; 29x2.4"; fold; TR EXO+ 3C MaxxTerra
Saddle
MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool
Sizing Guide & Geometry Charts
Sizing Guides are our recommendation for the right size bicycle based off overall height.
If you are in between sizes or have doubts about selecting the bike of your choice, please contact us at EMAIL: sales_sq@hupleong.com.
Please keep in mind that these sizes are only suggestions and that we always recommend getting further advice from your local MERIDA dealer.
