Unique Features

• Durable double butted aluminium frame.

• 140 mm RockShox Psylo fork with 35 mm chassis for incredible stiffness

• Progressive trail bike geometry with long reach, slack head angle and steep seat angle.

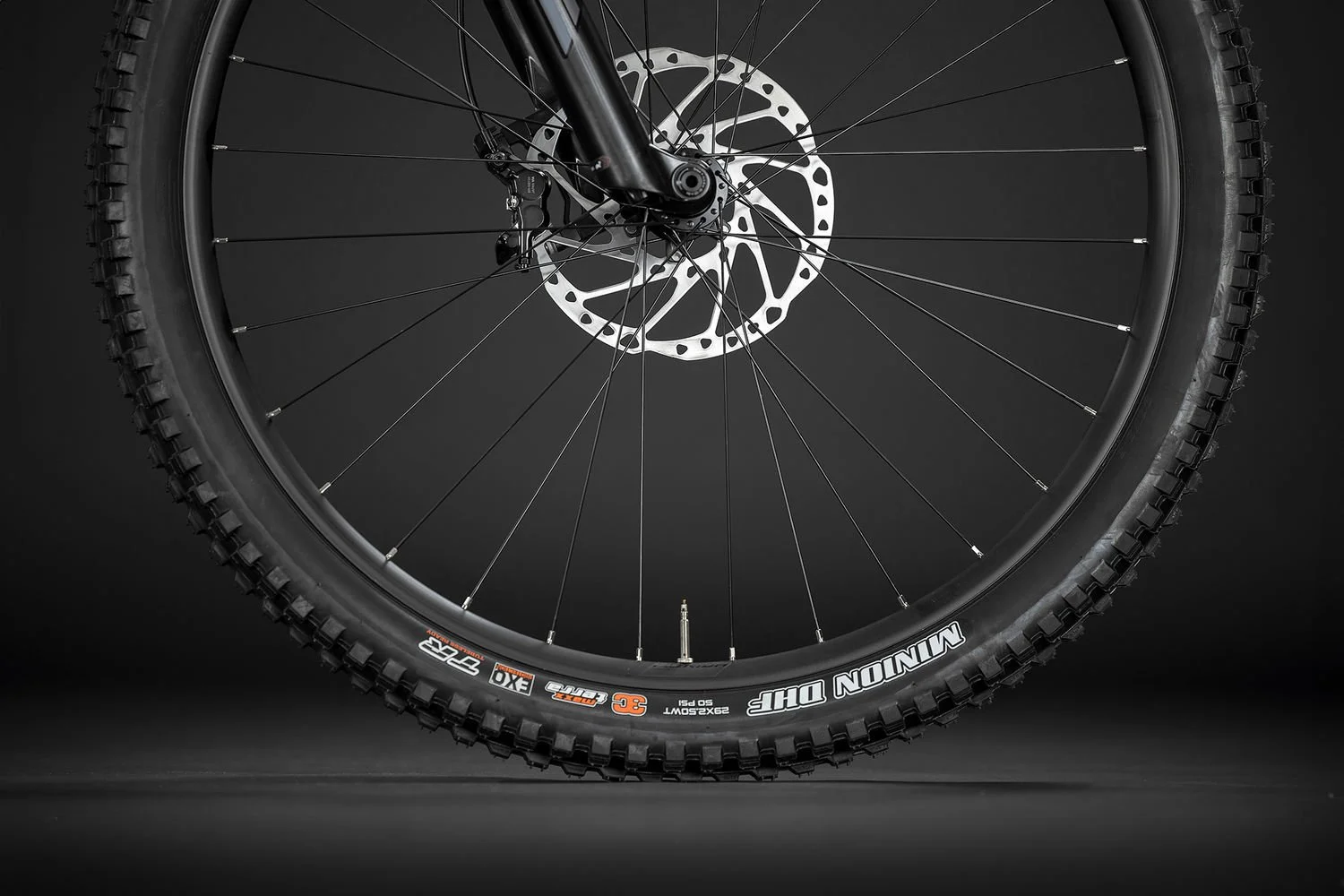

• 29er wheels specced with 2.5" front and 2.4" rear tyre with aggressive trail pattern.

• Extremely low standover height paired with long travel dropper posts.

• Powerful 4-piston SRAM DB4 brakes

Price Includes

Merida Big.Trail 500 - Mokka (Brown):

• Merida Big.Trail 500 - Mokka (Brown) Fully Assembled, Checked & Fine Tuned.

• Please contact us separately for customization at EMAIL: sales_sq@hupleong.com

Payment Options

Buy Now & Pay Later with the following modes in our showroom:

• 6 or 12 months interest-free for DBS/POSB Credit Card - Phyiscal card is needed.

• 3 months interest-free through Atome payments.

Trade-In Policy

Out with the Old, In with the New:

• Purchased a bicycle from us in the last 2 years? If so, we’d be able to have your Current bike Traded In and its rebate used on this New Bike!

• Please contact us separately at EMAIL: sales_sq@hupleong.com to learn more or Click Here to fill out our Contact Form.

Accessories Recommended for add-on:

• Shimano Gravel and Mountain Bike Pedals

• Shimano Gravel and Mountain Bike Shoes

• LAZER Helmets

• NiteRider Lighting Systems

Accessories installed where necessary.

Find A Merida Near you:

1. Chapter 2 Cycle Pte Ltd - Block 451 Ang Mo Kio Avenue 10, #01-1761, Singapore 560451 - Northern Singapore

2. 12cycle - 326 Tanjong Katong Road, Singapore 437104 - Eastern Singapore

3. Tube Innovation Bike Shop - Block 13 Old Airport Road, #01-55, Singapore 390013 - Eastern Singapore

4. Bike World - 625 Elias Road, #01-318, Elias Mall, Singapore 510625 - Eastern Singapore

5. The Bike Settlement - Block 261 Waterloo Street, #01-06, Waterloo Centre, Singapore 180261 - Central Singapore

6. Seng Bee Bicycle Shop - Block 5 Upper Boon Keng Road, #01-12, Singapore 380005 - Central Singapore

7. Bike Haus International - 785 Bukit Timah Road, Singapore 269761 - Western Singapore

Specifications

Hup Leong Co reserves the right to change information, specifications and graphics on these pages without prior notice.

Weight

14.5kg

Frame

BIG.TRAIL TFS II; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR

Fork

Rock Shox Psylo Silver RC; Air; 140 STR; platform

Seatpost

MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XSHORT: 150 SPT - SHORT/MID : 170 SPT - LONG: 200 SPT - XLONG: 230 SPT

Handlebar

MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB

Stem

MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD, 40mm all sizes

Crank

MERIDA Expert TR II; 32 ATC, 165mm XSHORT, SHORT, MID and LONG; 170mm XLONG

Rear Derailleur

Shimano CUES U6000; GS

Cassette

Shimano LG300; 11-48 ATC; 10 GER

Shifters

(R) Shimano CUES U6000, (L) Shimano SL-MT500-L

Brakes

Sram DB4; 4 piston

Rims

MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)

Hubs

(F) Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock, (R) Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock

Tires

(F) Maxxis Minion DHF; 29x2.5"; fold; TR EXO Dual, (R) Maxxis Dissector; 29x2.4"; fold; TR EXO Dual

Saddle

MERIDA COMP SL; 25% recycled material; V-mount

Sizing Guide & Geometry Charts

Sizing Guides are our recommendation for the right size bicycle based off overall height.

If you are in between sizes or have doubts about selecting the bike of your choice, please contact us at EMAIL: sales_sq@hupleong.com.

DOWNLOADS

• Merida Instruction Manuals
